feat(tui): replay the focus sweep when typing resumes after idle

[edwin-zvs]

What

The focus sweep (#1295, spec 0203) fires when a pane gains focus. That answers "where did my focus go" at the instant it moves — and says nothing to someone coming back to a terminal they left ten minutes ago, staring at a fleet of similarly shaped panes.

This replays the same sweep on the already-focused pane when a keystroke reaches it after a long silence. No second visual, no new drawing code: it re-arms the existing FocusBorderSweep so anything that changes the animation's look or geometry keeps applying to both cases.

State machine

FocusBorderSweep gains one field, last_key_at, and one method, note_focused_pane_key(now, idle_after), called once per dispatched key before routing — so the pane credited is the one about to consume the key. In order:

1. Every qualifying key refreshes the idle clock. Continuous or rapid typing therefore closes the gap on every keystroke and can never replay the sweep. At most one replay per idle→resume transition.
2. A key arriving while a sweep is already on screen is absorbed — it neither restarts nor extends it. That is what keeps focus-gain and idle-resume from stacking: the key that moved focus can't also re-arm, and the key after it lands inside the focus-gain sweep. No double animation.
3. Otherwise, a key idle_after or later than the previous one replays the sweep on the focused pane. The first key of a session counts as ending an idle gap (the TUI has been sitting untouched since it opened).

Focus-gain behavior is untouched: observe() still owns target transitions, and the startup baseline still does not animate.

Which keys count

Only keys a focus-bearing surface consumes. keyboard_overlay_owns_input() mirrors the gates at the top of on_key and suppresses the cue while a floating surface owns the keyboard — help, session picker, /configure, remote-control, route menu, suggestion deck, tasks popup, inline title rename, pinned fleet panel, the prompt/minibuffer strip, and the disconnected state. None of those are FocusBorderTargets, so a key they swallow must not flash an unrelated pane's border.

It is deliberately conservative: a popup that consumes some keys and falls through on others suppresses the cue for the key that dismisses it, and the pane gets it back on the next key. A missed cue beats flashing a border the keystroke never reached. Everything hosted inside a focused pane — PTY, Playbook, operator editor, inline UI, pinned clip — is the pane, and animates. Bare modifier presses are ignored.

Threshold: 120 s

FOCUS_BORDER_IDLE_RESUME_MS = 120_000, sitting next to FOCUS_BORDER_SWEEP_MS / FOCUS_BORDER_SWEEP_FRAME_MS. Two minutes is above every ordinary working pause — reading a diff, waiting out a harness turn, composing the next instruction — where the user has not lost track of focus and the motion would be pure distraction. It is short enough that stepping away for a coffee comes back to the cue. Anything in the tens of seconds fires during normal work; anything past a few minutes stops covering the common "switched windows and came back" case.

CONSTRUCT_FOCUS_SWEEP_IDLE_MS overrides it. That exists precisely so the recording below didn't require shortening the shipped constant — the committed default is 120 s, and the tape ran the daemon with the override at 4 s. Unset or unparseable falls back to the constant.

Frames

The sweep already gates its own 40 ms cadence timer on is_animating(), so nothing new runs while idle. One gap needed closing: the keystroke that re-arms the sweep is usually the same one the focused PTY consumes, and that path deliberately skips its paint (the child's echo is the visible change). skip_draw now yields while a sweep is on screen, so the band starts at the top-left corner instead of wherever the cadence timer picks it up. Gated on a live animation — an idle TUI keeps every existing skip, and there is no permanent repaint loop.

Tests

• focus_border_sweep_tests — clock injected, no sleeping: a 160 s run of 400 keystrokes (deliberately outlasting the threshold) never re-triggers; the transition on either side of it does; a key during a focus-gain sweep leaves started_at untouched; the env parser falls back on empty/garbage.
• app::tests (TestBackend) — idle → key paints a sweep whose every differing cell lies on the focused pane's border perimeter and nowhere else; continuous typing across five key kinds never re-arms; keys swallowed by help / the prompt / a disconnected TUI animate nothing, and the same key animates once the overlay is gone; C-x o then a key keeps one sweep on the new pane.

cargo test --workspace and cargo test -p construct-e2e both green.

Spec

specs/0207-tui-idle-typing-focus-sweep.md, with a pointer added to 0203. (Started life as 0206; renumbered after #1298 landed 0206-playbook-mark-and-region.md while this branch was open.)

Recording

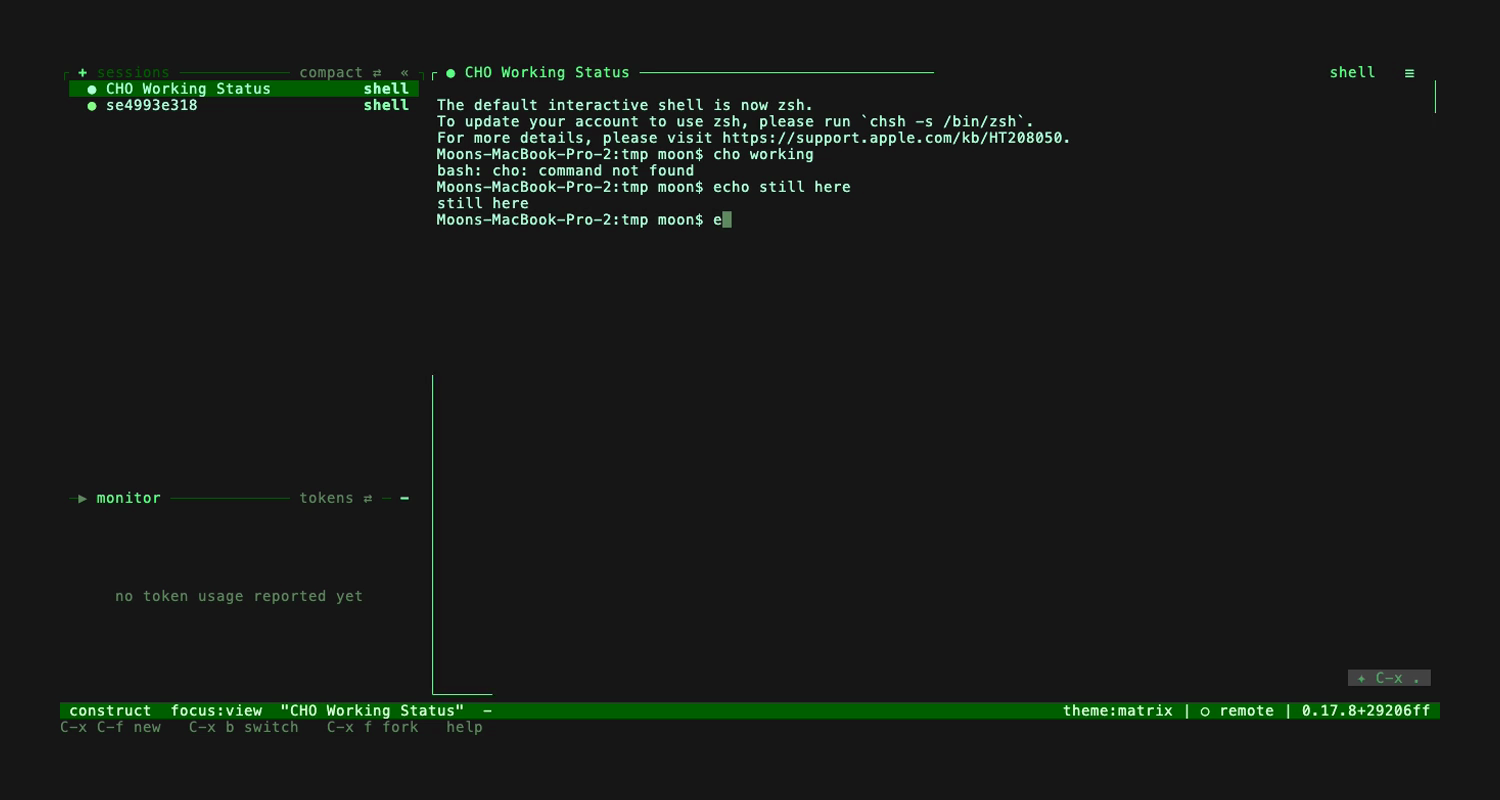

vhs, isolated CONSTRUCT_* dirs, worktree binary, CONSTRUCT_FOCUS_SWEEP_IDLE_MS=4000. The tape types, keeps typing (no animation), goes quiet past the threshold, then presses one key. Verified frame-by-frame: the only multi-cell border repaint in the whole 32 s capture is the 200 ms band right after the resuming keystroke.

Local artifacts: /tmp/sweep-artifacts/ (mp4, gif, verified midpoint frame, steady-while-typing frame).
