🔒 MikroTik Blocker

A production-ready web app that auto-resolves domains into RouterOS-ready block scripts for MikroTik routers. Supports ASN CIDR ranges, deep DNS resolution, IPv6, and Layer7 protocol matching.

Live: mikrotik-blocker.vercel.app

✨ Features

🌐 Bulk domain input — paste multiple domains at once
🔍 Deep IP resolution — 7-layer engine covering ASN ranges, CNAME chains, PTR sweep, announced CIDRs
📊 ASN CIDR blocking — fetches all announced prefixes via BGPView for 50+ known platforms
🟣 IPv6 support — resolves AAAA records + IPv6 CIDR ranges + /ipv6 firewall rules
🔍 Layer7 protocol blocking — matches HTTP Host header and TLS SNI
📦 Category blocklists — Ads, Adult, Malware via oisd.nl (30-min cache)
⚙️ Script options — output mode (Both / CIDR only / IPs only), custom list name, inbound src block
📋 RouterOS script generator — ready-to-paste .rsc for RouterOS 6.x and 7.x
⬇️ Export .rsc file — download and run on any MikroTik device
🖥️ Manual terminal steps — copy individual command blocks step by step
🔄 Auto-refresh scheduler — re-resolve and refresh every X hours via Vercel Cron
📈 Stats bar — 9 live metrics after every resolve
🎨 Dark / Light theme — system-aware with manual toggle
♿ Accessible UI — full keyboard navigation, ARIA roles, focus indicators
⌨️ Keyboard shortcut — Ctrl+Enter to generate script instantly

🎨 UI / UX

The interface is designed for both network engineers and first-time MikroTik users.

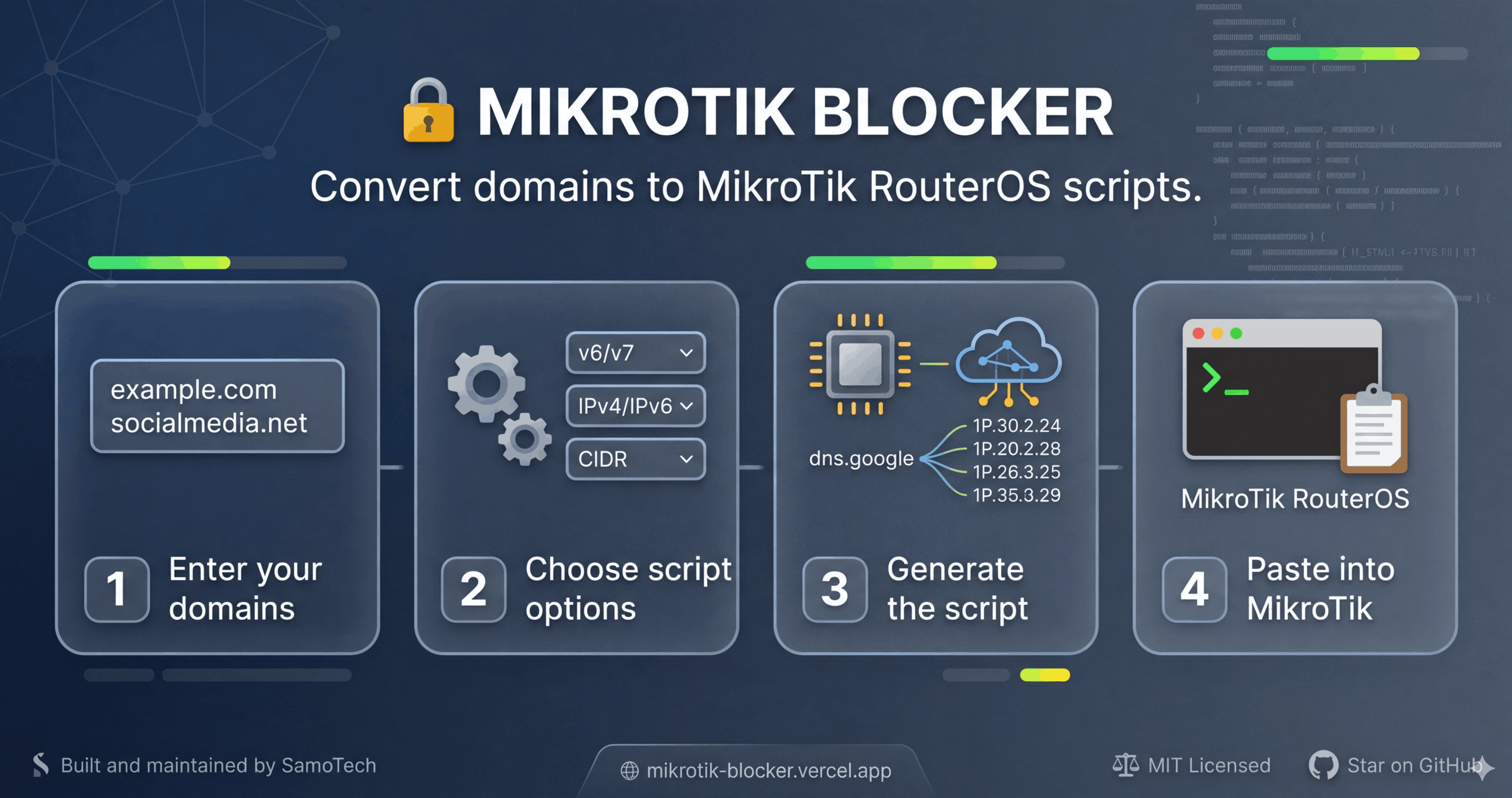

Getting started

When you first open the app, the right panel shows an onboarding guide with four numbered steps:

Enter domain names, one per line
Choose options (RouterOS version, IPv6…)
Click Generate Script or press Ctrl+Enter
Copy and paste into your MikroTik terminal

Left panel — inputs & options

Section	Behaviour
Domain Input	Multi-line textarea; inline ASN collision warnings appear as you type
File Import	Drag-and-drop or click to import a `.txt` / `.csv` domain list
Category Blocklists	Collapsible accordion — fetch Ads / Adult / Malware lists from oisd.nl
Script Options	Collapsible accordion — RouterOS version, output mode, checkboxes, Layer7 toggle
Preset Manager	Save and reload domain+option sets by name
Scheduler	Set a recurring auto-refresh interval

Right panel — output

State	What you see
Empty (first visit)	Onboarding empty-state with step guide
Loading	Shimmer progress bar at the top + skeleton lines
Resolved	Domain chips with method badge (`ASN+DNS` / `DNS`), CIDR/IP counts
Script ready	Tab bar appears: Terminal (interactive) · Script (.rsc file)

Script toolbar

Button	Behaviour
📋 Copy	Copies to clipboard; button turns green `✓ Copied!` for 2 s
⬇️ Download .rsc	Saves file + shows toast
🔎 Validate	Calls `/api/validate` and shows errors / warnings inline
▼ Diff	Shows line-by-line diff vs previous script (appears after re-resolve)
`{n} lines · {size}`	Live script size indicator in the toolbar

Keyboard & accessibility

Shortcut	Action
`Ctrl+Enter` / `⌘+Enter`	Generate script (when domains are present)
`Tab` / `Shift+Tab`	Full keyboard navigation across all controls
`Enter` / `Space`	Toggle accordions

All interactive elements have aria-label, aria-pressed, aria-selected, and role attributes.
Focus rings are visible on all focusable elements (:focus-visible).
Live regions (aria-live="polite") announce resolved results to screen readers.

Responsive breakpoints

Viewport	Layout
≥ 1100 px	Two-column grid (340 px left + flex right)
900 – 1100 px	Two-column grid (340 px left + flex right), reduced gap
600 – 900 px	Single-column stack, header collapses
< 600 px	Compact single-column, badges hidden, reduced font sizes

Theme

Toggled via the button in the header. Both dark and light themes use the same CSS variable system — all components adapt automatically.

🧠 Resolution Engine — 7 Layers

Every domain goes through all layers in parallel. Results are merged and deduplicated.

Input domain
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 1 — ASN Prefixes (BGPView)                            │
│  50+ platforms mapped to ASNs → fetches all announced CIDRs │
│  facebook.com → AS32934/63293 → 157.240.0.0/16, ...        │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 2 — DoH Multi-Source (ALL in parallel)                │
│  Google DNS + Cloudflare + Quad9 queried simultaneously     │
│  Results merged — each provider may return different IPs    │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 3 — Public Blocklists (oisd.nl)                       │
│  Ads / Adult / Malware domain lists — 30-min in-memory cache│
│  Up to 500 domains per category resolved in parallel        │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 4 — Subdomain Variants                                │
│  www · m · mobile · app · api · cdn · static               │
│  media · assets · img · video  (12 variants per domain)     │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 5 — CNAME Chain Unwrap (max 3 hops)                   │
│  Follows CNAME aliases across all DoH providers             │
│  instagram.com → instagram.c10r.facebook.com → IPs         │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 6 — IP → Announced CIDR (ip-api.com batch)            │
│  For non-ASN domains: maps resolved IPs to their /CIDR      │
│  104.21.5.7 → 104.21.0.0/17 (full Cloudflare block)        │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
┌─────────────────────────────────────────────────────────────┐
│ Layer 7 — Reverse DNS PTR Sweep + Sibling Re-resolve        │
│  PTR records on resolved IPs → discover sibling hostnames   │
│  Re-resolves siblings → catches extra IPs on same /24 block │
└─────────────────────────────────────────────────────────────┘
     │
     ▼
  Output: CIDR v4 + CIDR v6 + IPs v4 + IPs v6
  User chooses: Both / CIDR only / IPs only

🔍 Layer7 Protocol Blocking

Layer7 blocking works at the packet payload level — it inspects the first 2 KB of each TCP stream and matches domain names directly, regardless of IP address changes.

What it matches

Traffic	Pattern
HTTP (port 80)	`Host:` header in the request
HTTPS (port 443)	SNI hostname in TLS `ClientHello`

Generated regex structure

^.*(Host: [^\r]*example\.com|\x16\x03[\x00-\x03]...SNI...example\.com)

HTTP part — case-insensitive Host: header match
TLS part — follows exact TLS record structure to locate the SNI extension bytes

Generated RouterOS commands

/ip firewall layer7-protocol
:if ([:len [find name=l7-facebook_com]] = 0) do={
  add name=l7-facebook_com regexp="^.*(Host: [^\r]*facebook\.com|\x16\x03...)"
}

/ip firewall filter
:if ([:len [find chain=forward layer7-protocol=l7-facebook_com action=drop]] = 0) do={
  add chain=forward layer7-protocol=l7-facebook_com action=drop comment="L7-block facebook.com" place-before=0
}

⚠️ Warning: Layer7 inspection is CPU-intensive as it scans every packet payload. Use on edge/border routers with moderate traffic only. For ISP-level or high-throughput environments, use ASN CIDR mode instead.

🗂️ Project Structure

mikrotik-blocker/
├── api/
│   ├── resolve.js              ← POST /api/resolve  (main engine v4.5)
│   ├── validate.js             ← POST /api/validate
│   ├── health.js               ← GET  /api/health
│   ├── mikrotik/push.js        ← POST /api/mikrotik/push
│   └── package.json
├── frontend/
│   ├── src/
│   │   ├── components/
│   │   │   ├── DomainInput.jsx
│   │   │   ├── ScriptOutput.jsx      ← copy animation, line count, byte size
│   │   │   ├── ManualTerminal.jsx
│   │   │   ├── SchedulerPanel.jsx
│   │   │   ├── StatsBar.jsx
│   │   │   ├── Footer.jsx
│   │   │   ├── PresetManager.jsx
│   │   │   ├── FileImport.jsx
│   │   │   ├── ScriptDiff.jsx
│   │   │   ├── ThemeToggle.jsx
│   │   │   ├── ErrorBoundary.jsx
│   │   │   └── PageShell.jsx
│   │   ├── pages/
│   │   │   ├── ApiDocs.jsx
│   │   │   ├── SponsorsPage.jsx
│   │   │   ├── ChangelogPage.jsx
│   │   │   ├── LicensePage.jsx
│   │   │   ├── PrivacyPage.jsx
│   │   │   └── TermsPage.jsx
│   │   ├── hooks/
│   │   │   └── useResolver.js
│   │   ├── App.jsx             ← Accordion, EmptyState, ProgressBar, keyboard shortcut
│   │   ├── App.css             ← all styles extracted from JSX; 3 responsive breakpoints
│   │   ├── index.css           ← CSS variables, animations, scrollbar, focus ring
│   │   └── main.jsx
│   ├── public/
│   │   ├── og-image.png
│   │   ├── sitemap.xml
│   │   └── robots.txt
│   ├── vercel.json
│   ├── vite.config.js
│   └── package.json
├── backend/                    ← self-hosted Express alternative (not used on Vercel)
├── .github/
│   └── FUNDING.yml
├── LICENSE
├── CHANGELOG.md
├── SPONSORS.md
└── docker-compose.yml

🚀 API Reference

`POST /api/resolve`

Request body:

{
  "domains":     ["facebook.com", "tiktok.com"],
  "listName":    "blocked",
  "outputMode":  "both",
  "addFilter":   true,
  "addSrcBlock": false,
  "includeIPv6": true,
  "addLayer7":   false,
  "category":    null
}

Field	Type	Default	Description
`domains`	`string[]`	`[]`	List of domains to resolve (max 50)
`listName`	`string`	`"blocked"`	RouterOS address-list name
`outputMode`	`string`	`"both"`	`both` / `cidr-only` / `ips-only`
`addFilter`	`bool`	`true`	Add `/ip firewall filter` drop rule
`addSrcBlock`	`bool`	`false`	Also block inbound src traffic
`includeIPv6`	`bool`	`true`	Include AAAA + `/ipv6 firewall` rules
`addLayer7`	`bool`	`false`	Add Layer7 HTTP Host + TLS SNI rules
`category`	`string\|null`	`null`	`ads` / `adult` / `malware`

Response:

{
  "resolved": [
    {
      "domain":         "facebook.com",
      "method":         "ASN+DNS",
      "asns":           ["32934", "63293"],
      "cnames":         ["star-mini.c10r.facebook.com"],
      "cidrs":          [{ "cidr": "157.240.0.0/16", "description": "FACEBOOK" }],
      "cidrsV6":        [{ "cidr": "2a03:2880::/32",  "description": "FACEBOOK" }],
      "ips":            ["157.240.241.35", "157.240.20.35"],
      "ipsV6":          ["2a03:2880:f003:c07:face:b00c::167"],
      "layer7Regex":    "^.*(Host: [^\\r]*facebook\\.com|...)",
      "totalAddresses": 12,
      "error":          null
    }
  ],
  "script": "# MikroTik Blocker script...",
  "stats": {
    "totalDomains":  2,
    "totalCIDRs":    6,
    "totalCIDRsV6":  2,
    "totalIPs":      14,
    "totalIPsV6":    8,
    "asnResolved":   2,
    "cnamesFound":   3,
    "layer7Rules":   0,
    "failed":        0
  }
}

`POST /api/validate`

Validates a generated script for syntax issues.

Request body:

{ "script": "# RouterOS script content..." }

Response:

{
  "valid":    true,
  "errors":   [],
  "warnings": [{ "code": "LARGE_SCRIPT", "message": "Script has 800+ lines..." }],
  "info":     [{ "message": "42 address-list entries found" }]
}

📜 Example Script Output

# ================================================
# MikroTik Blocker — Auto-Generated Script
# Date    : 2026-03-30T20:00:00.000Z
# Domains : facebook.com
# List    : blocked
# Mode    : both + IPv6 + Layer7
# ================================================

# Step 1 — Layer7 protocol patterns
/ip firewall layer7-protocol
:if ([:len [find name=l7-facebook_com]] = 0) do={
  add name=l7-facebook_com regexp="^.*(Host: [^\r]*facebook\.com|...)"
}

# Step 2 — Remove existing entries
/ip firewall address-list remove [find list=blocked comment~"facebook.com"]

# Step 3a — IPv4
/ip firewall address-list
add list=blocked address=157.240.0.0/16 comment="facebook.com-range"
add list=blocked address=157.240.241.35 comment="facebook.com-ip"

# Step 3b — IPv6
/ipv6 firewall address-list
add list=blocked address=2a03:2880::/32 comment="facebook.com-range6"

# Step 4 — Drop rules
/ip firewall filter
:if ([:len [find chain=forward dst-address-list=blocked action=drop]] = 0) do={
  add chain=forward dst-address-list=blocked action=drop comment="Block blocked" place-before=0
}
/ipv6 firewall filter
:if ([:len [find chain=forward dst-address-list=blocked action=drop]] = 0) do={
  add chain=forward dst-address-list=blocked action=drop comment="Block blocked IPv6" place-before=0
}

# Step 5 — Verify
/ip firewall address-list print where list=blocked
/ipv6 firewall address-list print where list=blocked

🗃️ Built-in Platform → ASN Map (50+ platforms)

Category	Platforms	ASNs
Social	Facebook, Instagram, WhatsApp, Messenger, Meta, Threads, TikTok, Twitter/X, Snapchat, Telegram, Discord, Reddit, LinkedIn, Pinterest	AS32934, AS396986, AS13414, AS36561, AS62041, AS36459, AS54113, AS14413...
Streaming	YouTube, Netflix, Hulu, Disney+, Prime Video, Twitch, Spotify	AS15169, AS2906, AS23286, AS40027, AS16509, AS46489, AS35228
Gaming	Steam, Epic Games, EA/Origin, Blizzard/Battle.net, Roblox	AS32590, AS46489, AS12222, AS57976, AS49604
VPN	NordVPN, ExpressVPN, ProtonVPN	AS212238, AS25820, AS62371
Gambling	Bet365, PokerStars	AS43215, AS19905

⚙️ Script Options

Option	UI Control	Effect
`both`	◑ Both	CIDR ranges + individual IPs
`cidr-only`	📊 CIDR Only	ASN prefixes only (most powerful, fewest entries)
`ips-only`	🔵 IPs Only	DNS-resolved IPs only (lightest)
Add firewall rule	✅ Checkbox	Adds `/ip firewall filter` drop rule
Block inbound src	⬜ Checkbox	Also adds `src-address-list` drop rule
Include IPv6	✅ Checkbox	AAAA records + `/ipv6 firewall` block
Layer7	⬜ Checkbox	HTTP Host + TLS SNI regex match

🚀 Deploy to Vercel

npx vercel --prod

No environment variables required for the core app — it is fully stateless.

Optional: To enable direct router push (/api/mikrotik/push), set these in Vercel Environment Variables:

Variable Description

MT_HOST MikroTik router IP or hostname

MT_USER RouterOS API username

MT_PASS RouterOS API password

MT_PORT RouterOS API port (default 8728)

💻 Local Development

Prerequisites: Node.js >= 18

# Vercel Dev (recommended — runs both frontend and API together)
npm install -g vercel
vercel dev
# → http://localhost:3000

# Frontend only
cd frontend && npm install && npm run dev
# → http://localhost:5173

# Docker (self-hosted Express backend)
docker-compose up --build

⚠️ Constraints

Constraint	Value
Max domains per request	50
Vercel function timeout	30 s (`resolve`), 15 s (`push`), 5 s (`health`)
Blocklist cache TTL	30 minutes (in-memory, resets on cold start)
Layer7 regex size limit	2 KB per pattern (RouterOS limit)
Runtime	Node.js 18+ (native `fetch`, no extra packages)
Storage	None — fully stateless

💛 Sponsorship

MikroTik Blocker is free and open-source. If it saves you time, consider supporting:

See SPONSORS.md for tiers and perks.

📄 License

MIT — see LICENSE

Name		Name	Last commit message	Last commit date
Latest commit History 70 Commits
.github		.github
api		api
backend		backend
docs/assets		docs/assets
frontend		frontend
public		public
.gitignore		.gitignore
CHANGELOG.md		CHANGELOG.md
LICENSE		LICENSE
README.md		README.md
SPONSORS.md		SPONSORS.md
docker-compose.yml		docker-compose.yml
vercel.json		vercel.json

Variable	Description
`MT_HOST`	MikroTik router IP or hostname
`MT_USER`	RouterOS API username
`MT_PASS`	RouterOS API password
`MT_PORT`	RouterOS API port (default `8728`)

Uh oh!

Folders and files

Latest commit

History

Repository files navigation

🔒 MikroTik Blocker

✨ Features

🎨 UI / UX

Getting started

Left panel — inputs & options

Right panel — output

Script toolbar

Keyboard & accessibility

Responsive breakpoints

Theme

🧠 Resolution Engine — 7 Layers

🔍 Layer7 Protocol Blocking

What it matches

Generated regex structure

Generated RouterOS commands

🗂️ Project Structure

🚀 API Reference

POST /api/resolve

POST /api/validate

📜 Example Script Output

🗃️ Built-in Platform → ASN Map (50+ platforms)

⚙️ Script Options

🚀 Deploy to Vercel

💻 Local Development

⚠️ Constraints

💛 Sponsorship

📄 License

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases

Sponsor this project

Uh oh!

Packages 0

Uh oh!

Contributors 1

Languages

`POST /api/resolve`

`POST /api/validate`

Packages
