GitHub Readme Activity Graph Action

Generate beautiful activity graphs for your GitHub profile! 🚀

Quick Start   |   Inputs   |   Options Reference

🚀 Quick Start

Generate activity graph cards using GitHub Readme Activity Graph within your GitHub Actions workflow. The output is automatically published to a dedicated branch, keeping your main history clean and ready to embed in your README.

Example Workflow

name: Update Activity Graph

on:
  schedule: # execute every 12 hours
    - cron: "* */12 * * *"
  workflow_dispatch:

jobs:
  build:
    runs-on: ubuntu-latest

    permissions:
      contents: write

    steps:
      - uses: actions/checkout@v6

      - name: Generate activity graph
        uses: maurodesouza/github-readme-activity-graph-action@v1
        with:
          username: ${{ github.repository_owner }}
          options: theme=dracula&hide_border=true
          output_path: dist/activity-graph.svg
          token: ${{ secrets.GITHUB_TOKEN }}

      - name: Push activity-graph.svg to the output branch
        uses: crazy-max/ghaction-github-pages@v3.1.0
        with:
          target_branch: output
          build_dir: dist
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}

Then embed from your profile README:

![Activity Graph](https://raw.githubusercontent.com/{owner}/{repo}/output/activity-graph.svg)

📋 Inputs

Input	Description	Required	Default
username	GitHub username to generate the activity graph for	true	-
options	Card options as a query string (key=value&...) or JSON	false	""
output_path	Output path for the SVG file (relative path; include filename with .svg)	false	"" (defaults to dist/activity-graph.svg)
token	GitHub token (PAT or GITHUB_TOKEN). Falls back to github.token if not provided	false	""

📚 Options Reference

Argument	Description	Type
bg_color	Card's background color	hex code (without #)
border_color	Card's border color	hex code (without #)
color	Graph card's text color	hex code (without #)
title_color	Graph card's title color	hex code (without #)
line	Graph's line color	hex code (without #)
point	Color of points on line graph	hex code (without #)
area_color	Color of the area under the graph	hex code (without #)
area	Shows area under the graph	boolean (default: false)
hide_border	Makes the border of the graph transparent	boolean (default: false)
hide_title	Sets the title to an empty string	boolean (default: false)
custom_title	Set the title to any string (use %20 for spaces)	string
theme	Name of available theme	string
radius	Border radius of graph	number (0-16)
height	Height of the graph	number (200-600)
days	Number of days to display on graph	number (1-90, recommended below 40)
from	Date from which the graph starts	format YYYY-MM-DD
to	Date where the graph will end	format YYYY-MM-DD
grid	Show grid	boolean (default: true)

For the full list of customization options, check the original project.

Available Themes

Name	Preview
Default (cotton candy)

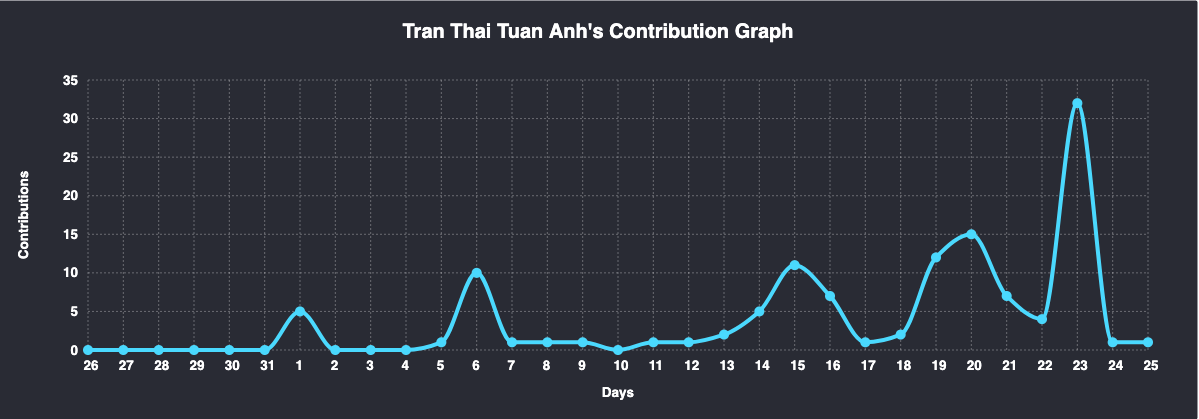

react
react-dark
github
github-compact
xcode
rogue

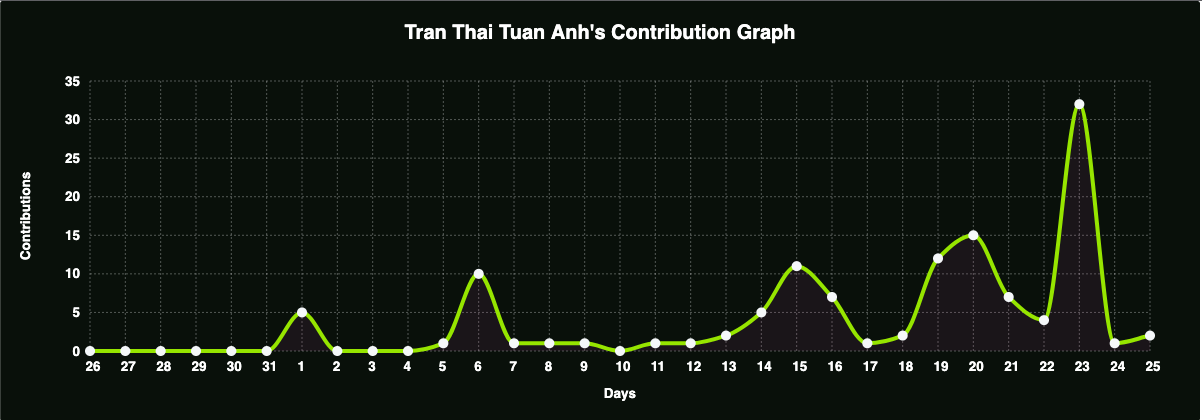

merko

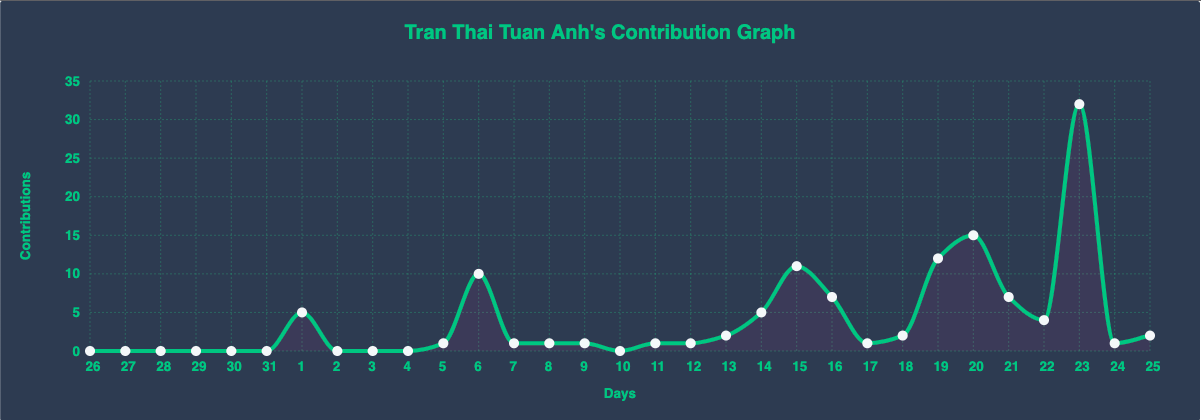

vue

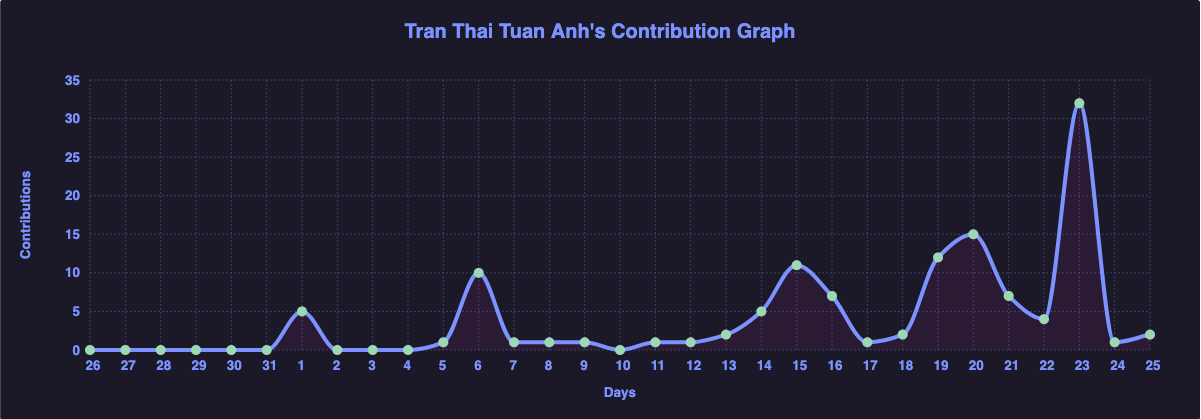

tokyo-night

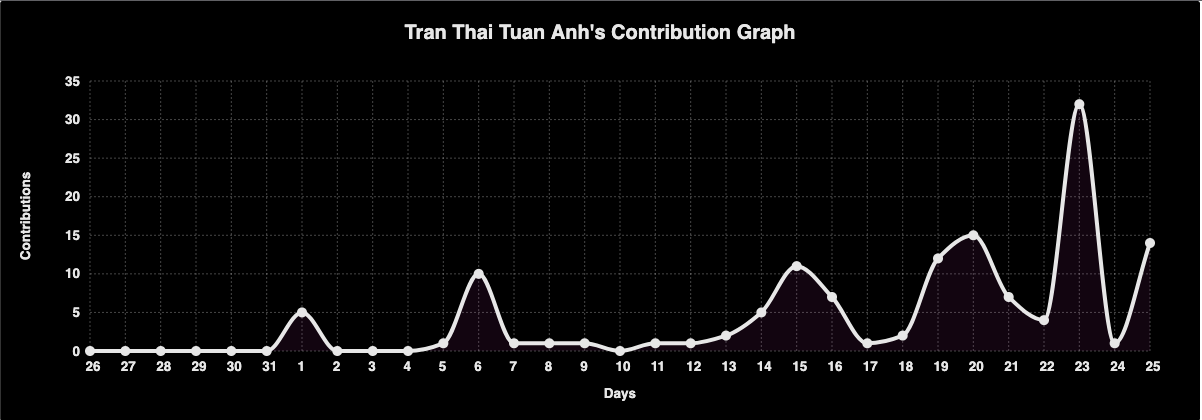

high-contrast

For more themes, check the original project.

📝 License

This project is licensed under the MIT License. For more details, please refer to the LICENSE file.

Made with ❤️ by Mauro de Souza.
Based on GitHub Readme Activity Graph by Ashutosh00710.
