Harbor Client Frontend Application

App Demo: Harbor Dashboard

Overview

The application is crafted using React to build scalable and reusable components. The following techniques adhere to best practices and enhance performance and maintainability:

• Atomic Design Principles: Components are categorized for reusability and scalability:
  • Atoms: Fundamental building blocks like Button, Text, and Flexbox.
  • Molecules: Combinations of atoms forming more complex components like Dropdown and BadgeList.
  • Organisms: Assemblies of molecules and atoms forming distinct UI sections like Headers and Sidebar.
  • Templates: Page-level layout components defining the structure of a page.
  • Pages: Complete pages using a combination of all components to form the final UI, managing states and passing them down as props through the component hierarchy.
• BEM Methodology: Modular and maintainable namespaced CSS classes, providing less specificity on an element.
• Media Queries: Ensures responsive design.
• Optimised Performance: To minimize redundant re-renders and computations using useMemo and useCallback hooks.
• Routing: To facilitate navigation and future scalability.
• Semantic HTML: Promotes SEO and accessibility.
• Testing: Integrated unit testing with Jest and React Testing Library covering all developed components.

Considerations

• Next.js: Both client and server applications are managed (and even deployed) separately.
• Redux: Omitted to maintain simplicity, as managing props and state are sufficient for this project.
• Context API: Not utilized to prevent frequent re-renders and maintain component reusability.
• Tailwind CSS: BEM methodology was preferred over a utility-first approach that might not align with the existing styling strategy.
• TypeScript: Deprioritized due to limited scope and time constraints, using React-based prop-types instead.
• Alternative Architectures: PWA and Micro Frontends are not implemented as they are deemed unnecessary for this project.

Any combinations of the above-mentioned techniques can be explored once we scale our application with more pages and features.

Features Implemented

As per the given requirements:

• Responsive dashboard showcasing testnets with their respective statuses and details.
• Testnet results are sortable (based on name, status, creation date, and modified date) and filterable (based on status).
• URL parameters are updated during sort and filter changes, ensuring sorted and filtered results upon refreshing the browser.
• The application gracefully handles loading, error, and zero state use cases.

Screenshots

Default View

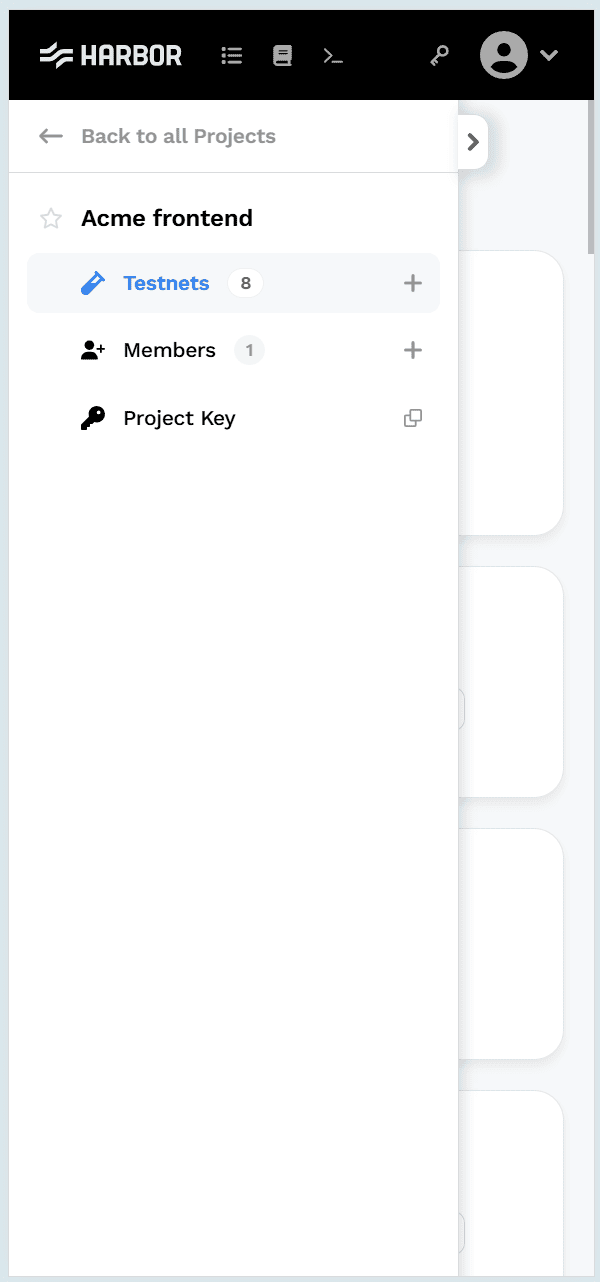

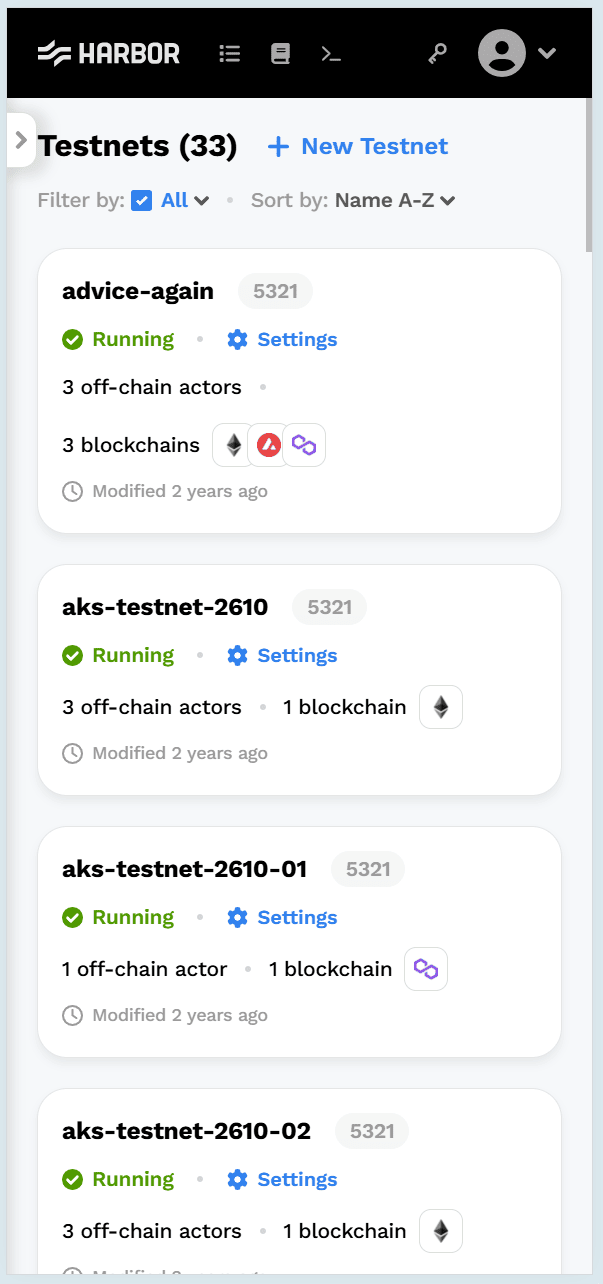

Mobile View

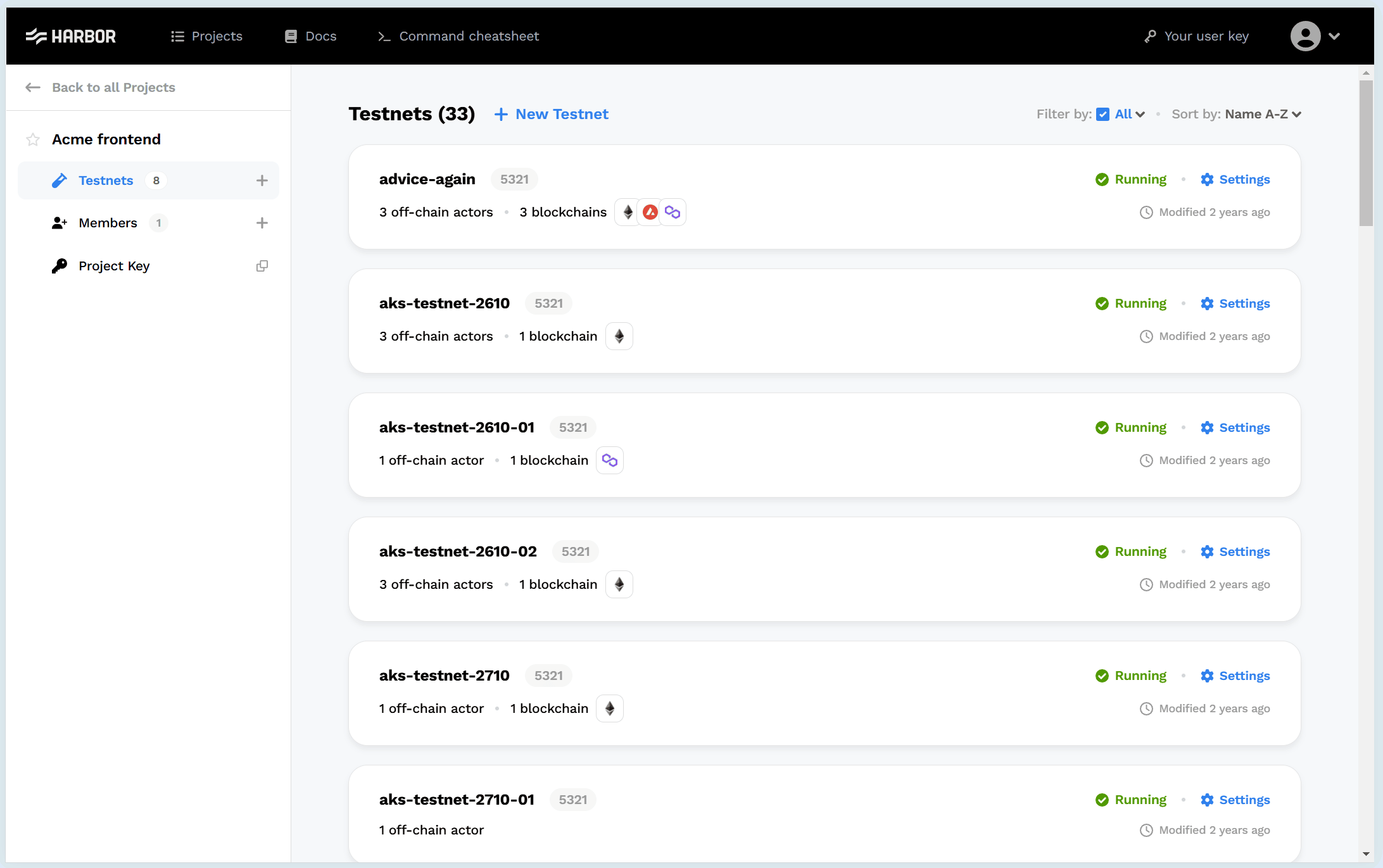

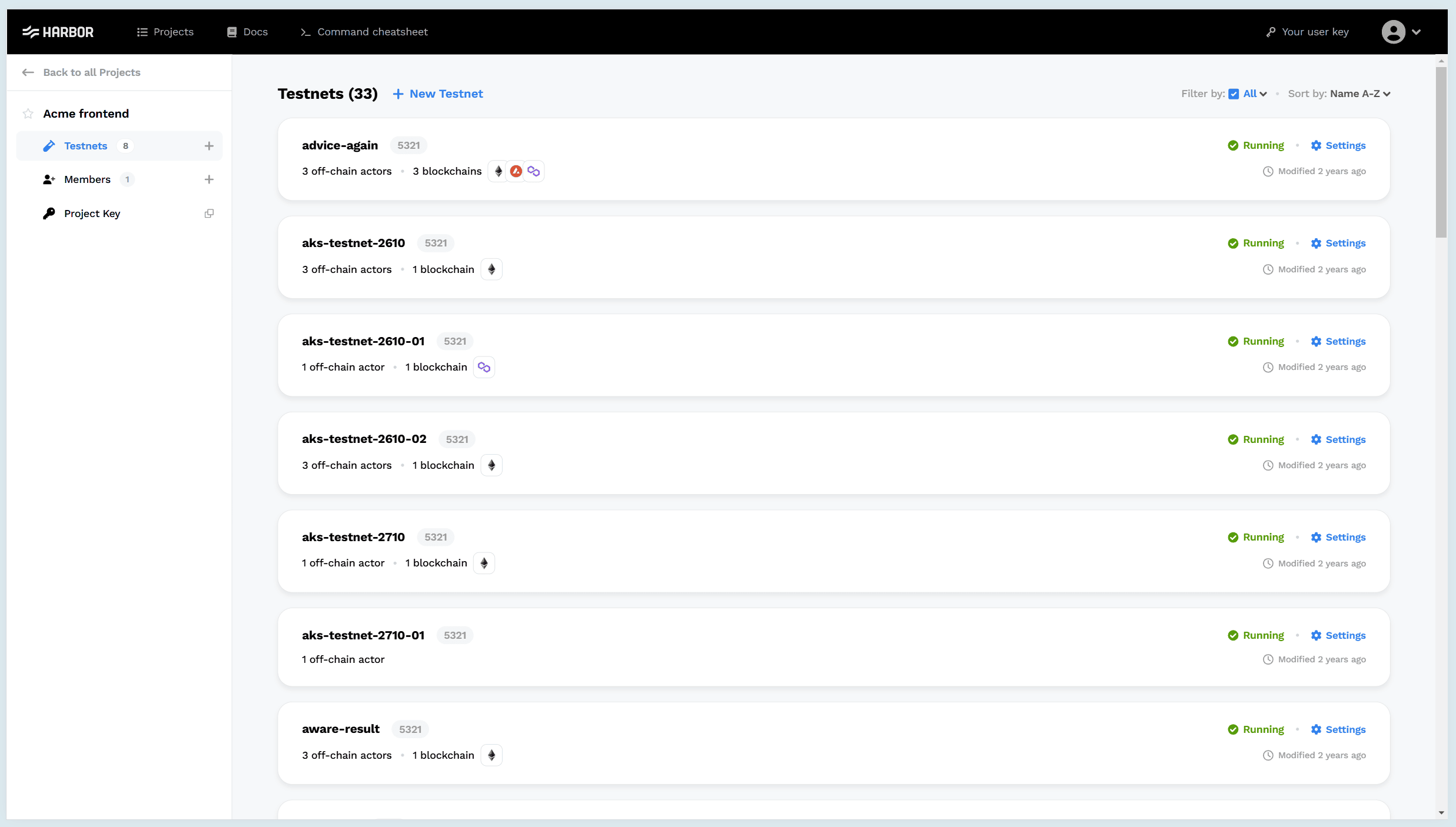

Monitor View

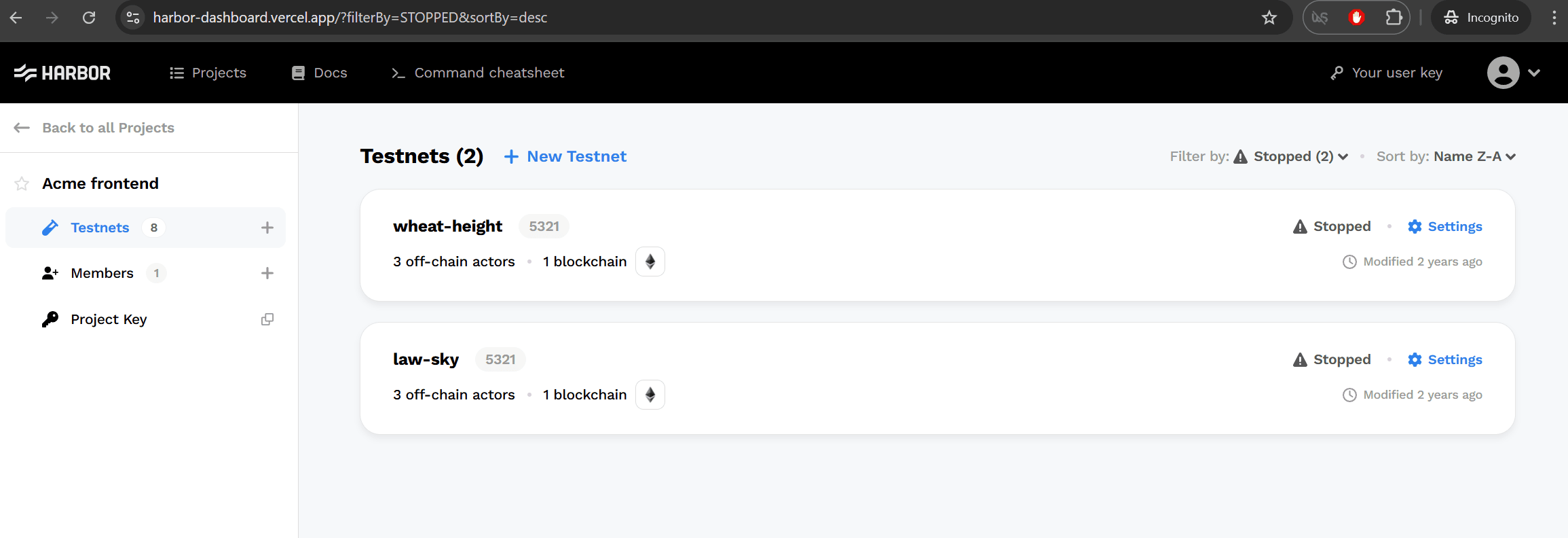

Testnet with Filtering

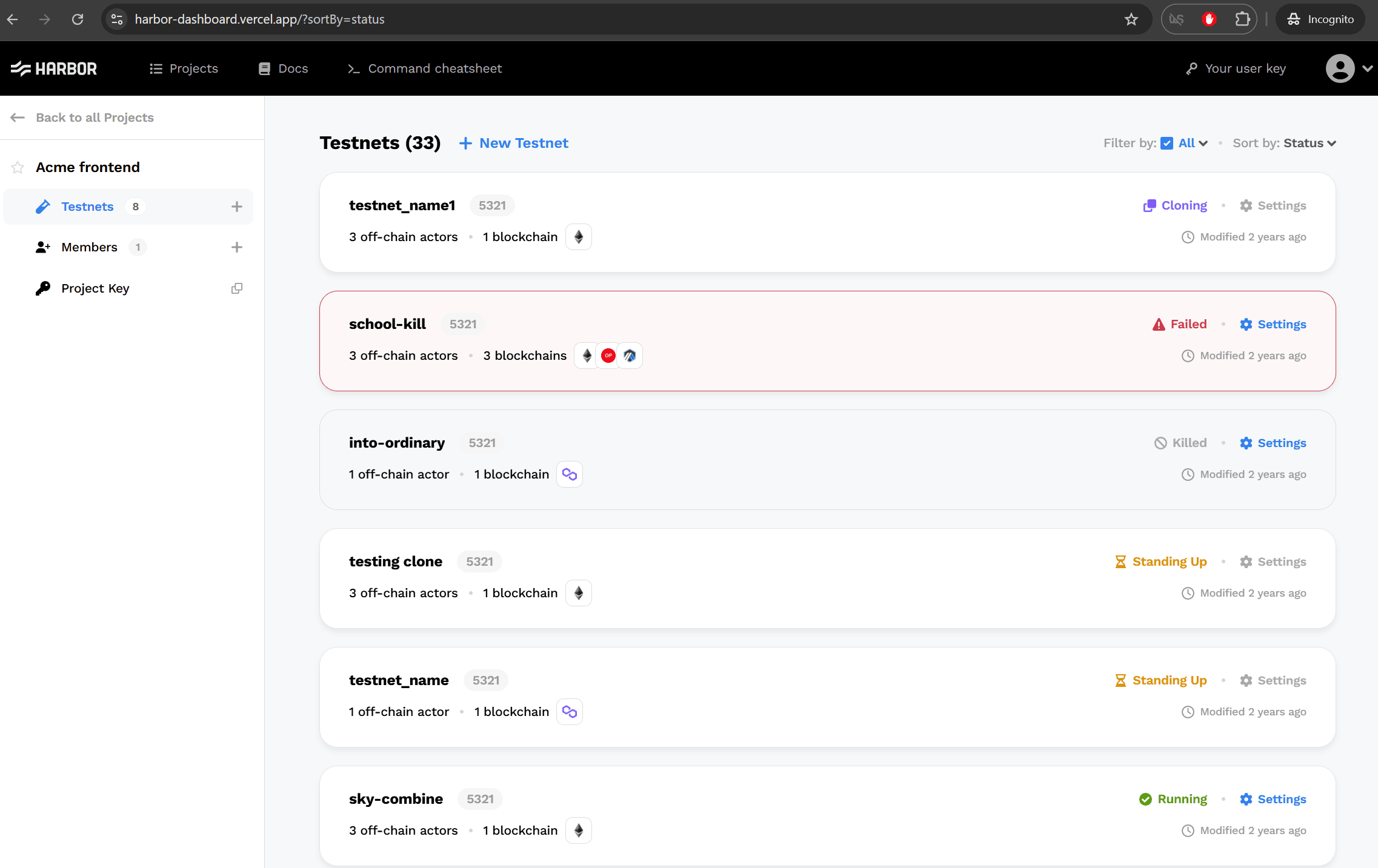

Testnet with Sorting

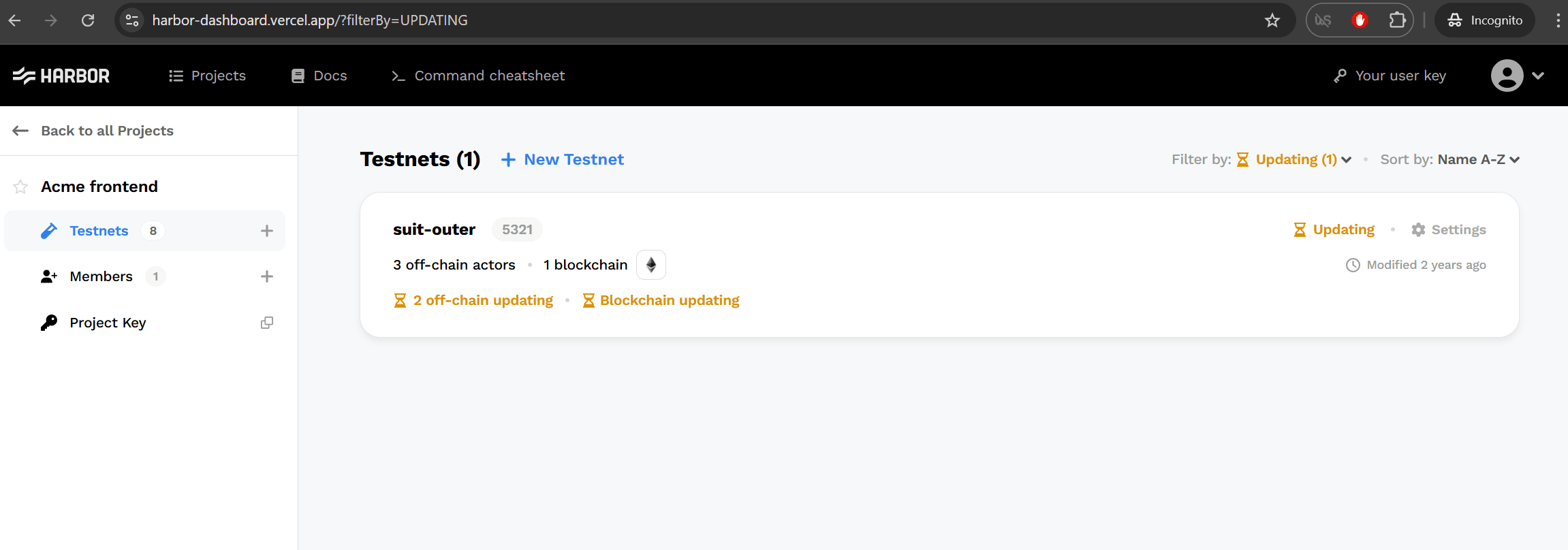

Testnet with Both Filtering and Sorting

Performance Audit

The application was tested using the following tools:

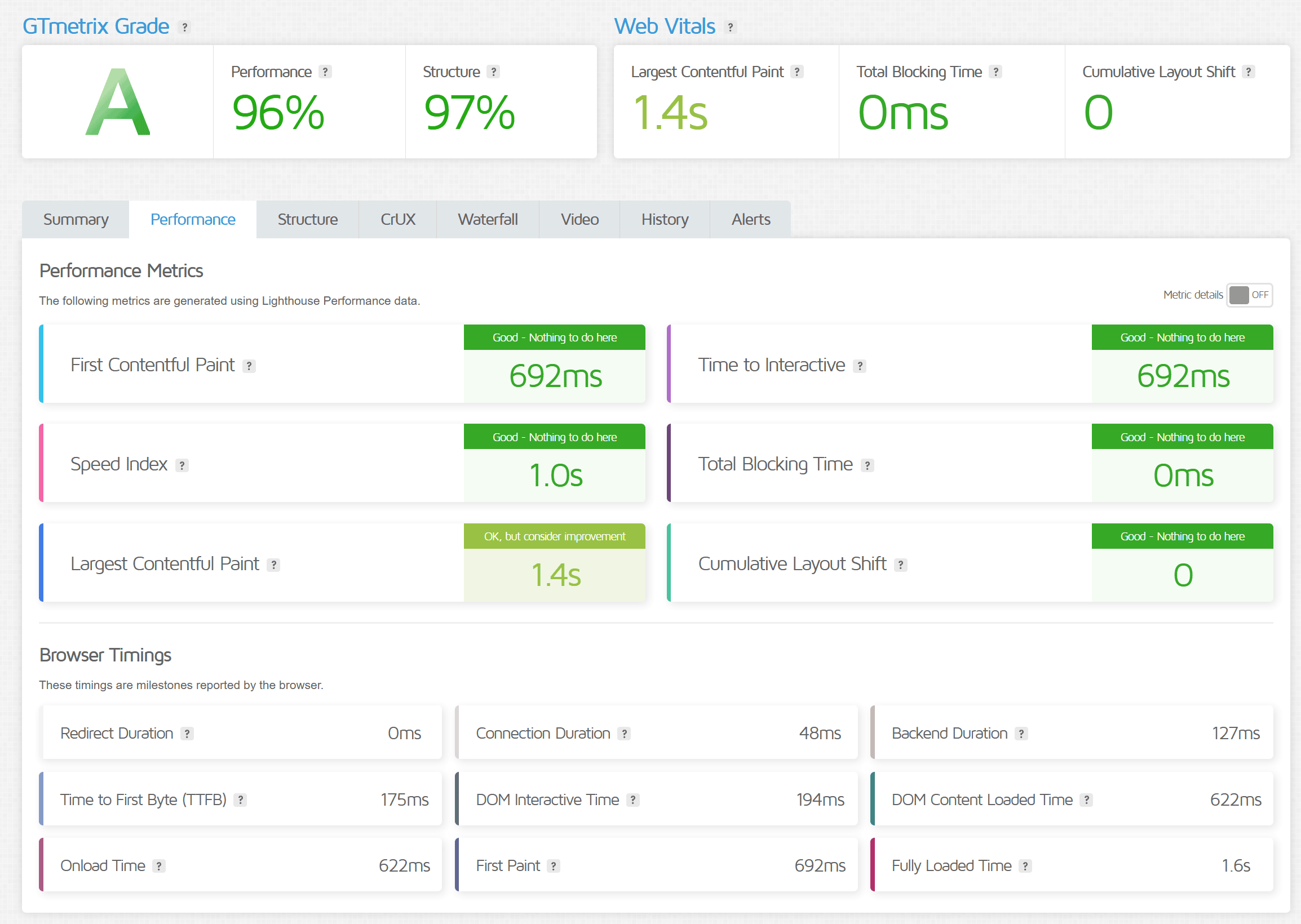

GTmetrix

Report Link

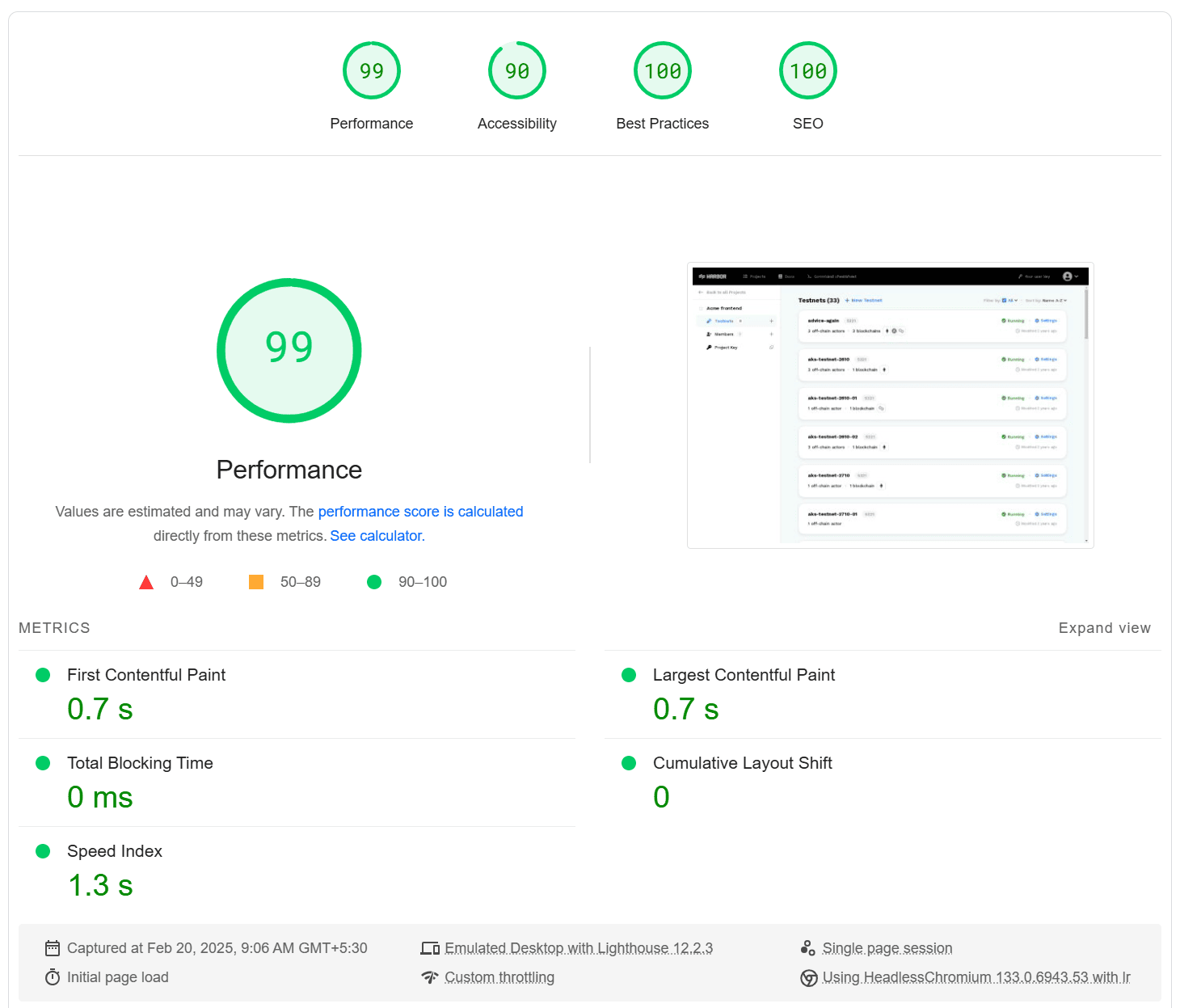

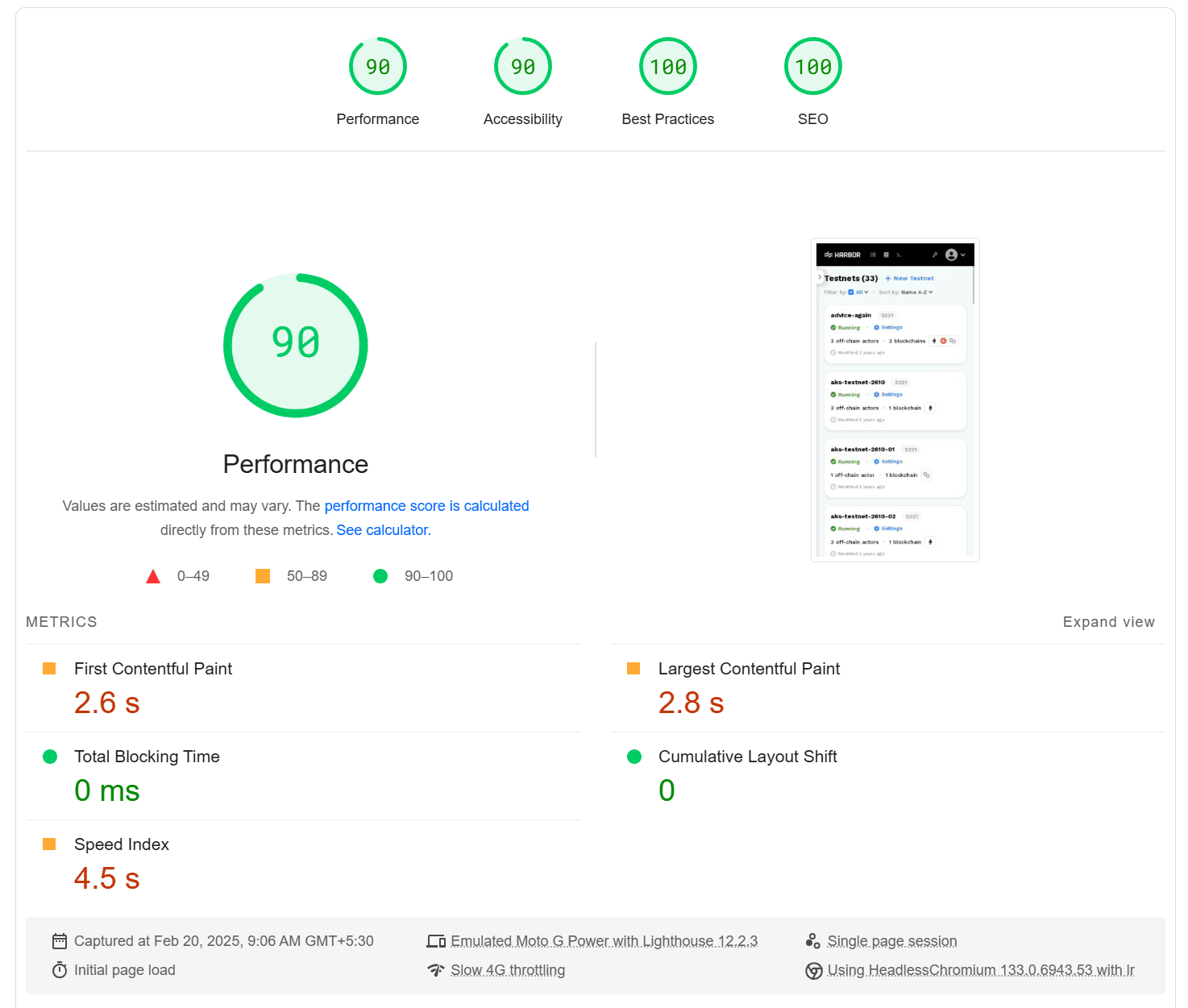

PageSpeed Insights

Report Link

Installation and Code Execution

To start the backend API server (in a separate terminal):

1. Navigate to the server directory.
2. Install dependencies with npm install.
3. Execute npm run dev to run the server at http://localhost:3000/.
4. Verify on the web browser at http://localhost:3000/api/testnets which will return mock testnets data.

To launch the frontend React client application (in a separate terminal):

1. Navigate to the client directory.
2. Install dependencies with npm install.
3. Create a new .env file and add REACT_APP_API_URL=http://localhost:3000/api as an environment varaible.
4. Execute npm run start to run the applation at http://localhost:3001/ automaitcaly opening the browser.
5. Verify on the web browser to see the dashboard rendering the testnets as per given design.

Additional Notes

• Enabled CORS on the server API endpoints for client application requests.
• Altered the testnets JSON data to showcase the final result with various statuses and their specific conditions.

Client Testing

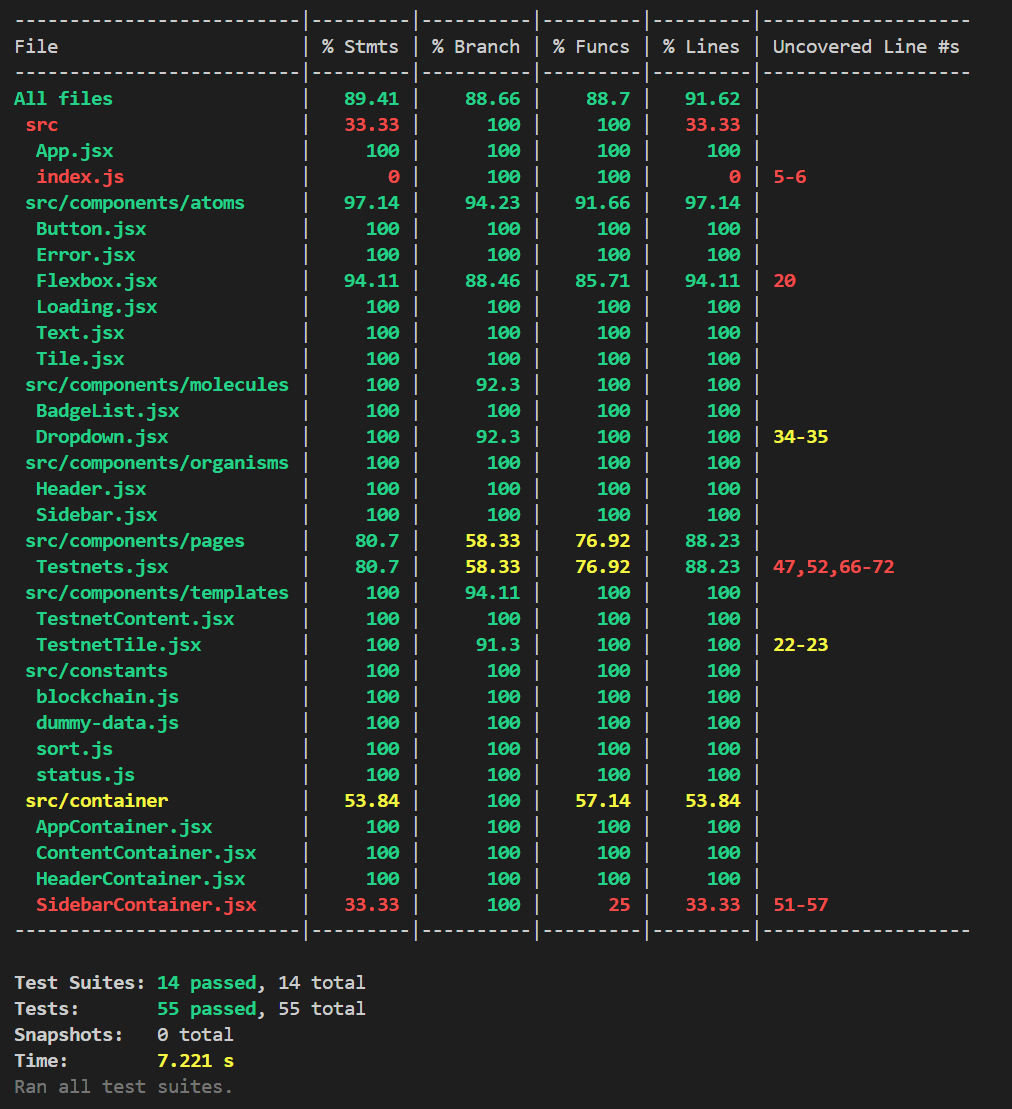

Run npm run test -- --coverage --watchAll at client directory to generate code coverage report.

Future Enhancements

Apart from alternative architectures mentioned earlier, there are some potential improvements that can be considered for further development:

• Implement filter by search input.
• Implement pagination and infinite scrolling for handling large datasets.
• Integrate Storybook for component documentation.
• Add E2E tests using Cypress or Playwright for improved test coverage.
• Ensure full compliance with accessibility standards.
• Support CSS theming for both light and dark modes.
• Optimize images and other assets for better performance.
• Integrate ESLint and Prettier for ensuring consistent coding style across the team.
• Intergrate GitHub Actions for seamless CI/CD pipeline.
• Explore GraphQL for efficient data fetching when scaling up.

Any further feedback is highly appreciated.
