Ansible Automation Platform 2, Controller/Tower Setup

Ansible provides the infrastructure automation needed for this ZTP to vSphere process.

Perform the following actions as a user with cluster-admin privileges:

## Assuming you're in the cloned repo root folder
OCP_VERSION="4.9"

##  Switch to ansible-automation-platform
oc project ansible-automation-platform

## Create an AAP 2 Controller/Tower Operator instance
oc apply -f ./hub-applications/${OCP_VERSION}/operator-instances/aap-operator/03_tower_controller_instance.yml

Deploy an Ansible Controller/Tower via AAP2 on OpenShift and do the following:

  1. Find the Admin password: oc get secret/ac-tower-admin-password -n ansible-automation-platform -o jsonpath='{.data.password}' | echo "$(base64 -d)"
  2. Log into the AAP2 Controller/Tower: echo "https://$(oc get -n ansible-automation-platform route/ac-tower -o jsonpath='{.spec.host}')"
  3. Attach a Subscription to Tower
  4. Create an Application, 'Resource owner password-based' Authorization grant type, 'Confidential' Client type
  5. Create a User Personal Access Token with that Application, take note of the Token

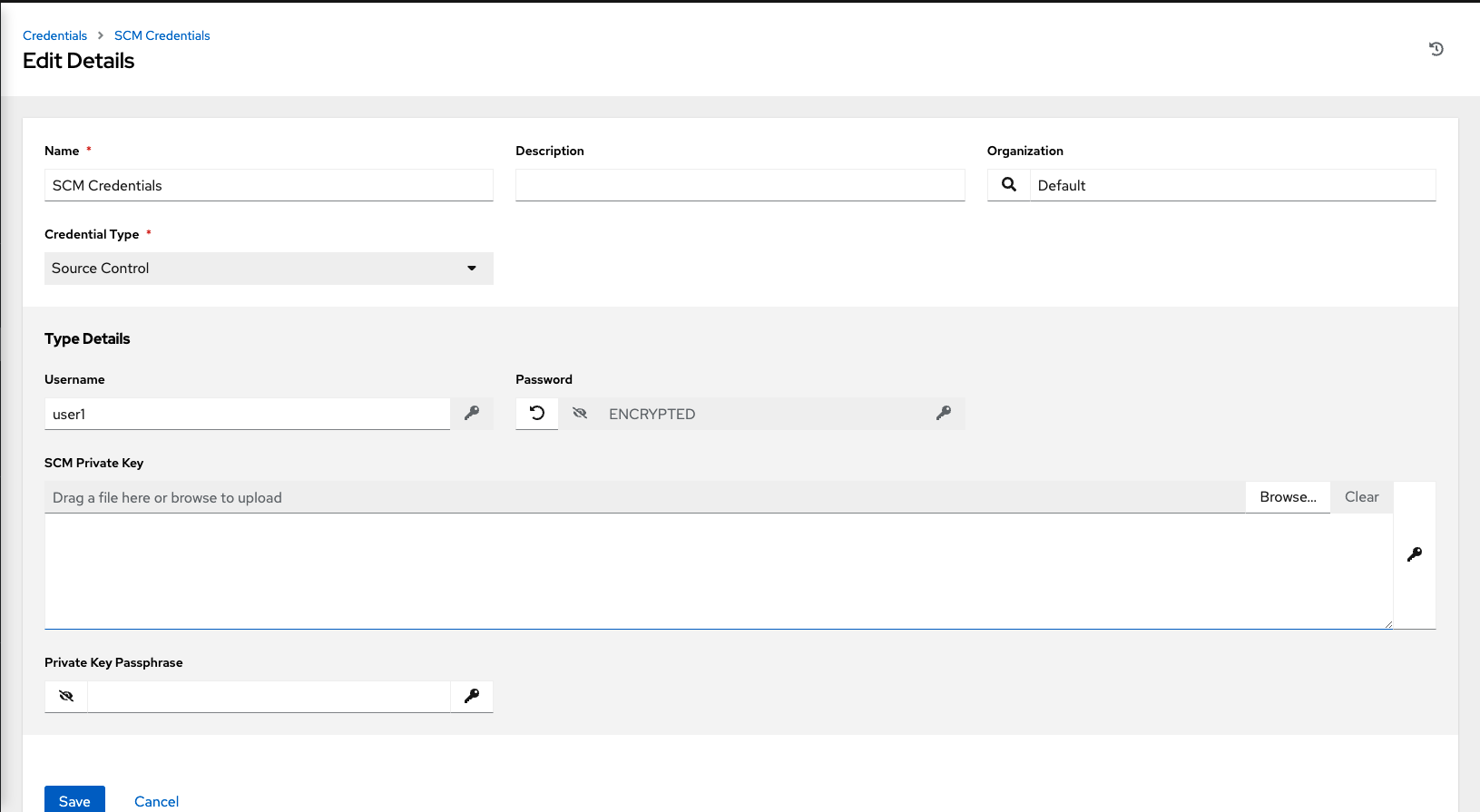

  6. Create SCM Credentials to access the ZTP Git repo SCM Credentials 20220306093607

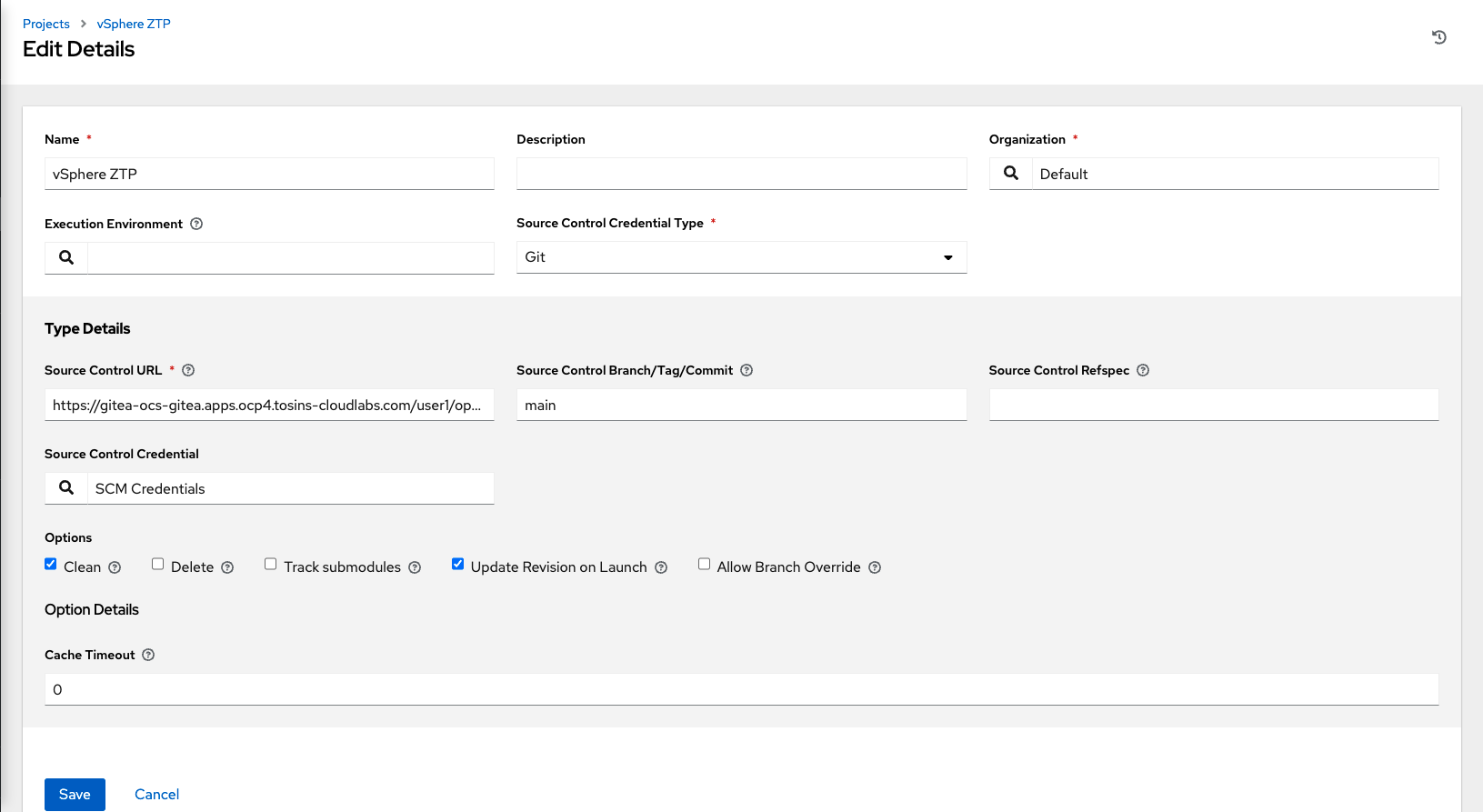

  7. Create a Project to the ZTP Git repo vSphere ZTP 20220306094000

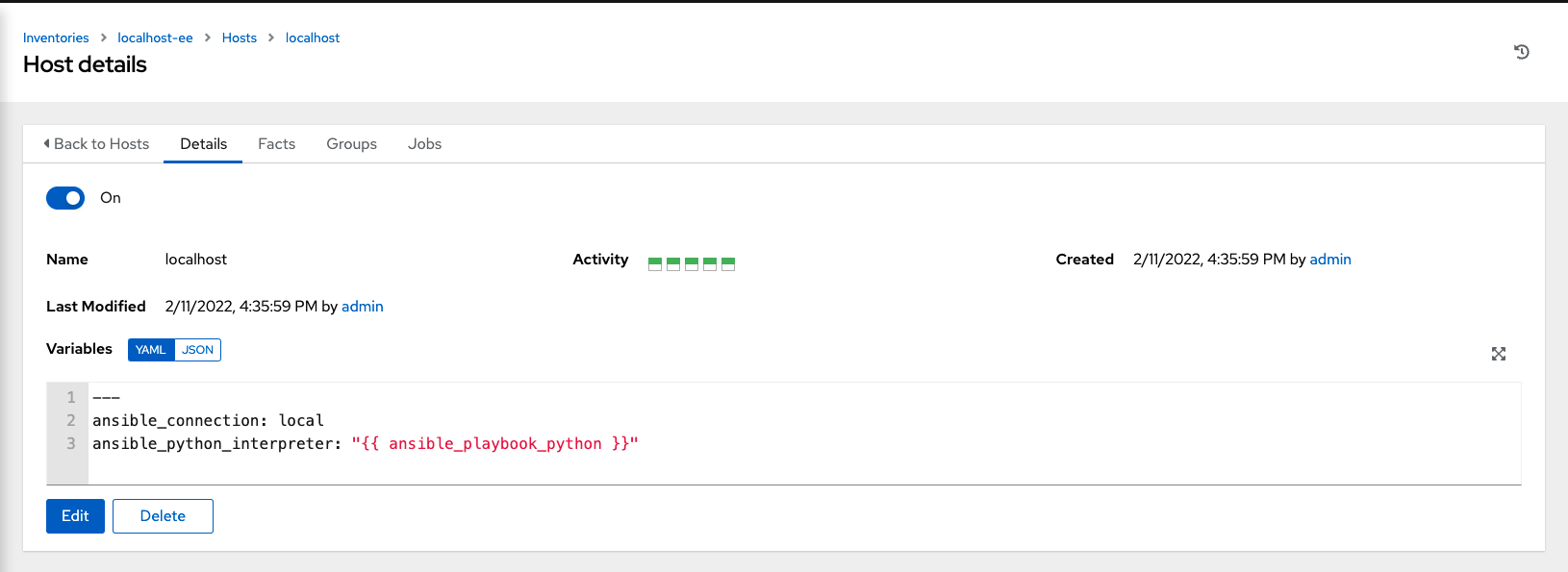

  8. Create an Inventory, localhost named localhost-ee being the only host with explicit locality via ansible_connection: local and ansible_python_interpreter: "{{ ansible_playbook_python }}" in the host inventory variables. 20220306091757

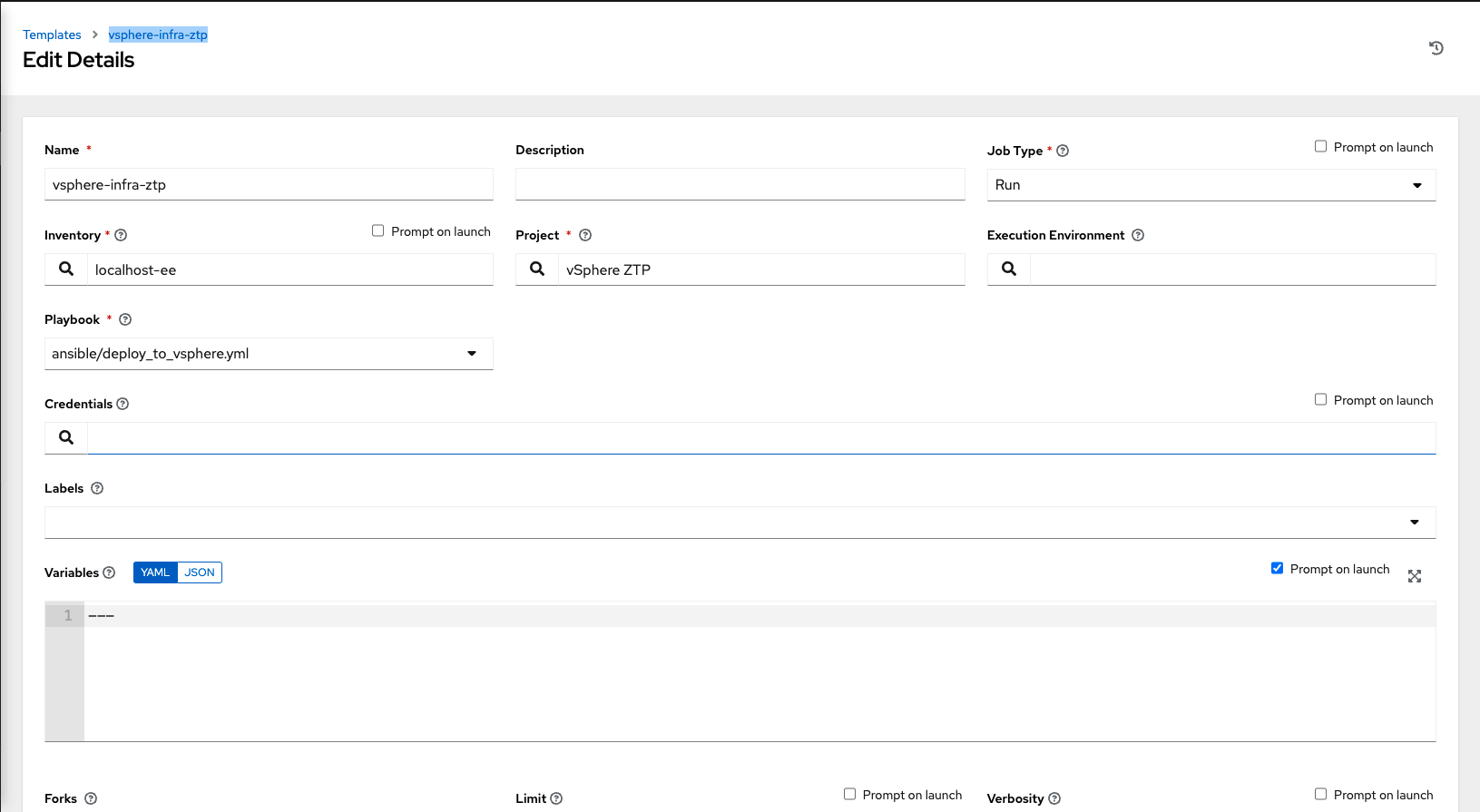

  9. Create a Job Template, allow for extra variables to be passed in vsphere-infra-ztp enable Concurrent Jobs 20220306094218
  10. Give the default ServiceAccount in the ansible-automation-platform Namespace cluster-admin permissions: oc adm policy add-cluster-role-to-user cluster-admin -z default -n ansible-automation-platform

Note: Save/Verify ./aap2_user_application_token for future use.

Note: You don't need to give the default SA full cluster-admin permissions, just enough RBAC to allow listing/viewing of Secrets in a few namespaces, but this is easier for testing. Production workloads will want to set proper Roles and RoleBindings.

Note: If you're using self-signed certificates you'll need to log into the AAP2 Controler/Tower, navigate to Settings > Job Settings - then add one of the following to the Extra Environment Variables:

{
 "GIT_SSL_CAINFO": "/etc/custom-ca/bundle-ca.crt",
}
{
  "GIT_SSL_NO_VERIFY": "True"
}
